WJ31F Magnetic holding relay |

WJ31F Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Magnetic holding relay: Reed Relay

model: WJ31F

Brand: SANYOU

Send email to us Download as PDF

Product Detail

Product Tags

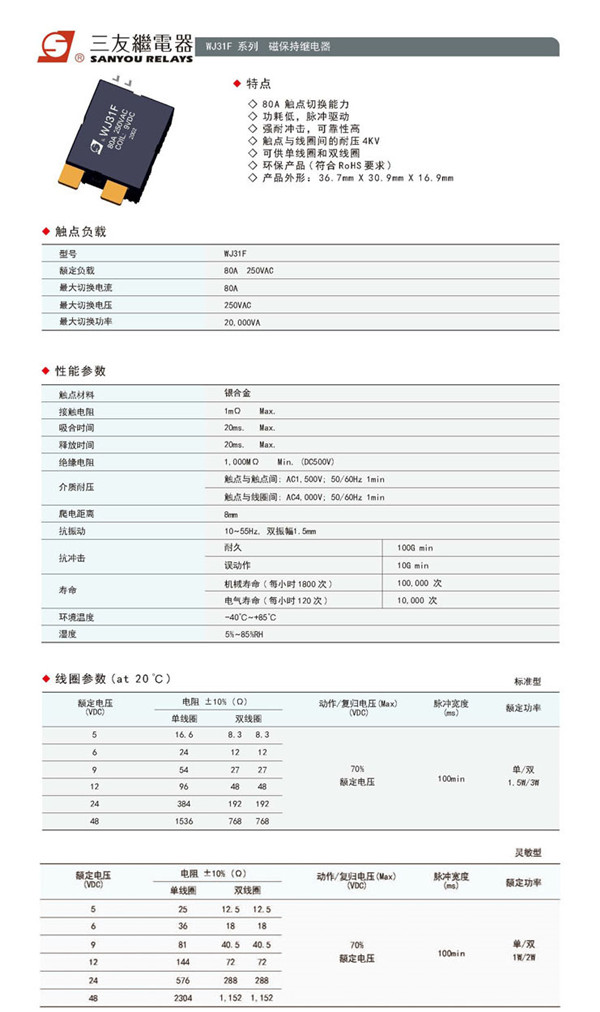

model	WJ31F

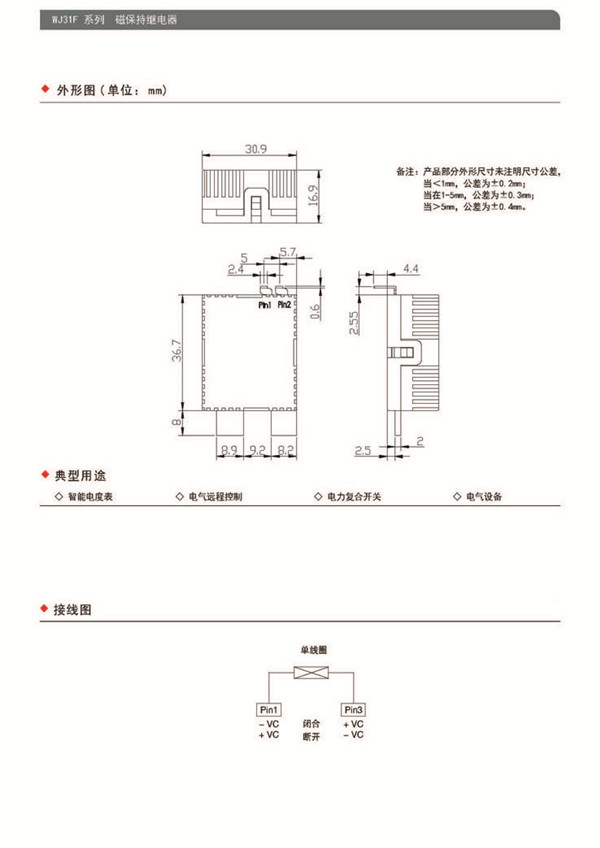

Overall dimension (mm)	36.7×30.9×16.9
Contact form:	1a,1b
contact rating	80A 250VAC
Coil power (W)	Single coil: 1.5W, double coil: 3W
Coil voltage (VDC)	5~48VDC
Contact resistance	≤1mΩ
ambient temperature	-40 ℃ ~ + 85 ℃ (non condensing)
Installation form	Printed board, quick connect
