WJ31D Magnetic holding relay |

WJ31D Magnetic holding relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Magnetic holding relay: Reed Relay

model: WJ31D

Brand: SANYOU

Send email to us Download as PDF

Product Detail

Product Tags

model	WJ31D

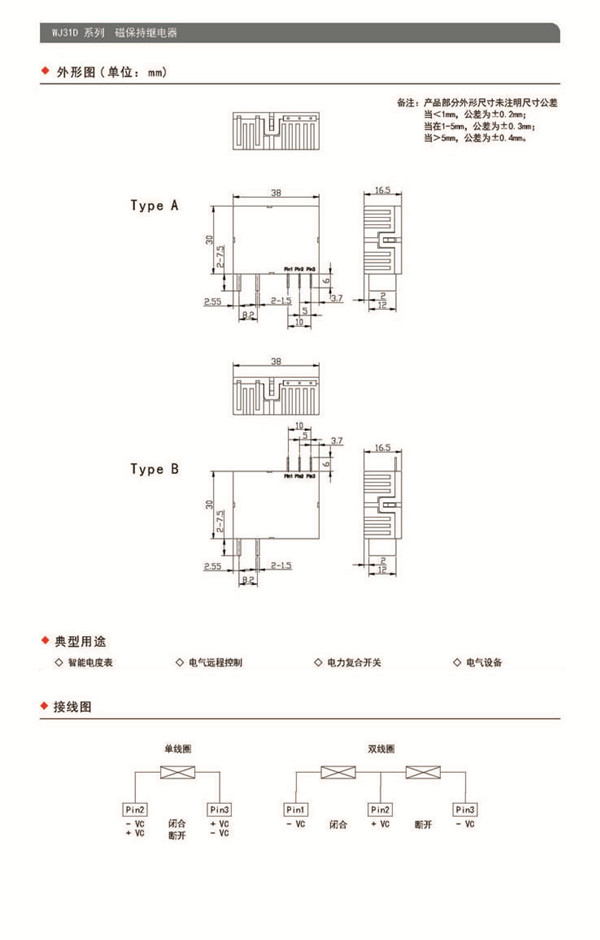

Overall dimension (mm)	38×30×16.5
Contact form:	1a,1b
contact rating	90A 250VAC
Coil power (W)	Single coil: 1.5W, double coil: 3W
Coil voltage (VDC)	5~48VDC
Contact resistance	≤1mΩ
ambient temperature	-40 ℃ ~ + 85 ℃ (non condensing)
Installation form	Printed board, quick connect
