SM General purpose power relay |

SM General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.

Price Term: FOB China port

Payment Term: TT, LC,PAYPAL,WESTERN UNION

OEM ORDER: Acceptance

General purpose power relay: Power Relay

Automotive Relays: Reed Relay

model: SM

Send email to us Download as PDF

Product Detail

Product Tags

model	SM

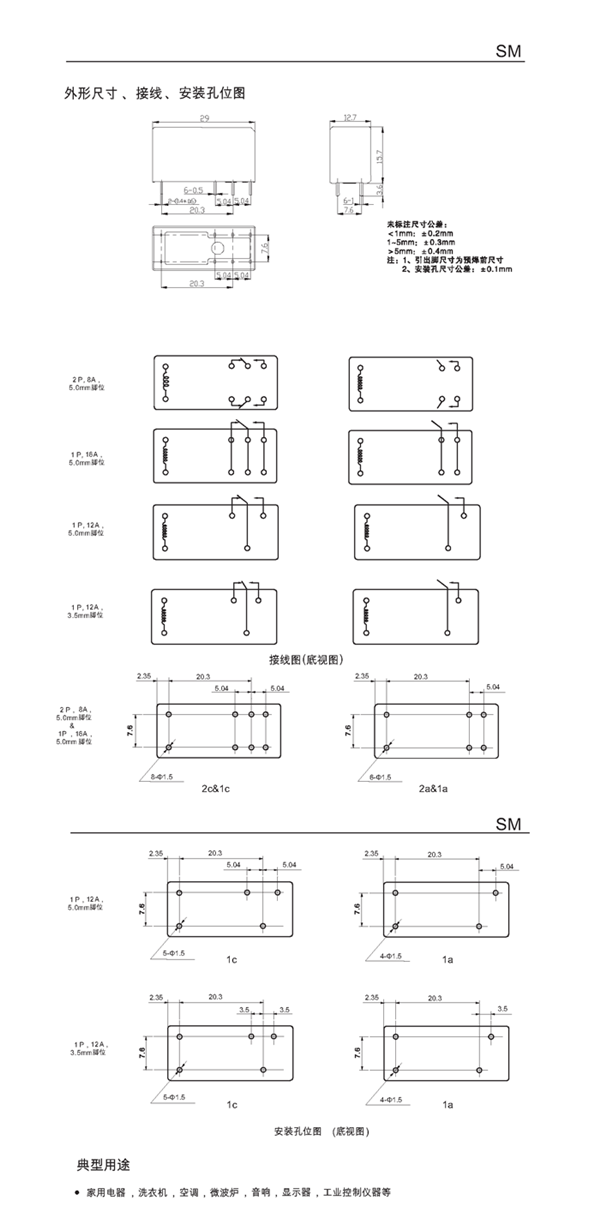

Overall dimension (mm)	29×12.7×15.7
Contact form:	1a,1c,2a,2c
contact rating	1Pole ：16A 250VAC/12A 250VAC；2Poles：8A 250VAC
Coil power (W)	0.4W
Coil voltage (VDC)	5~110VDC
Contact resistance	≤100mΩ
ambient temperature	-40℃~+85℃
Installation form	Printed board, socket type, quick connection type, flange type
