SFK-H General purpose power relay

Short Description:

Relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.


  • Price Term: FOB China port
  • Payment Term: TT, LC,PAYPAL,WESTERN UNION
  • OEM ORDER: Acceptance
  • General purpose power relay: Power Relay
  • Automotive Relays: Reed Relay
  • model: SFK-H
  • Brand: SANYOU
  • Product Detail

    Product Tags

    SFK-H  General purpose power relaySFK-H  General purpose power relaySFK-H  General purpose power relay

     model SFK-H

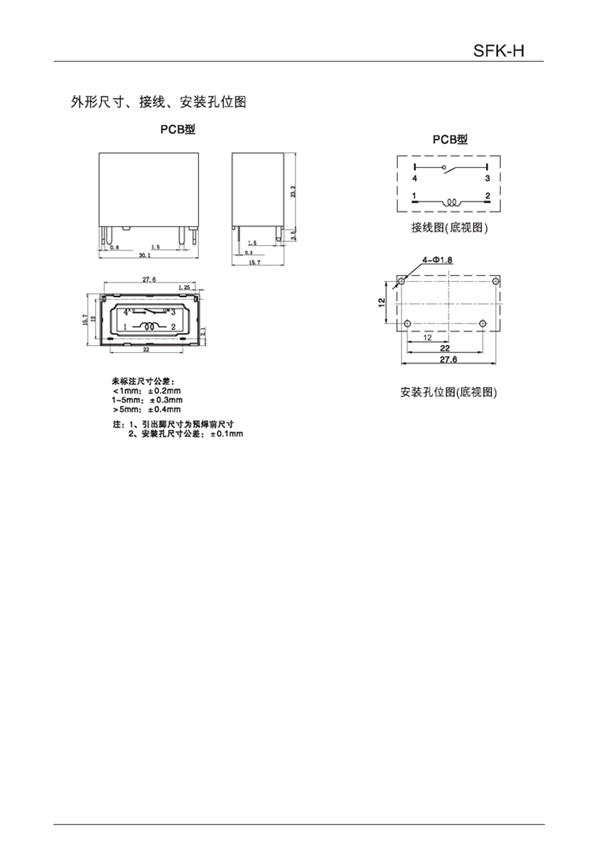

     Overall dimension (mm) 30.1×15.7×23.3
     Contact form: 1a
     contact rating
    33A 250VAC;22A 250VAC
     Coil power (W) 1.4W
    Coil voltage (VDC) 5~24VDC
     Contact resistance  ≤100mΩ
     ambient temperature -40℃~+85℃
     Installation form  Printed board, socket type, quick connection type, flange type
