SARK Hot selling automobile relay
SARK Hot selling automobile relay is an automatic switch element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment.
| model | SARK |

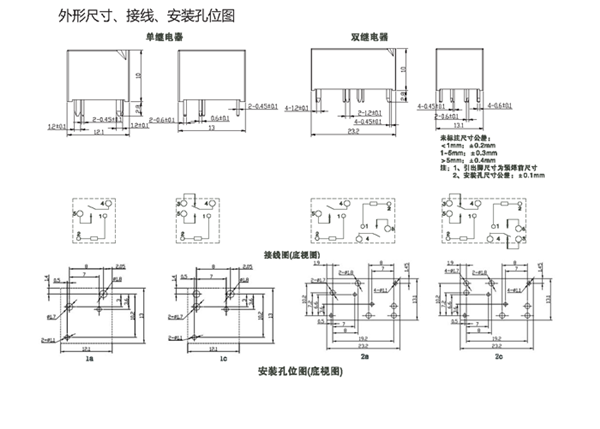

| Overall dimension (mm) | 12.9×12.0×10(single) ; 23.2×12.9×10(double) |
| Contact form: | 1a,1c,2a,2c |
| contact rating |
NO/NC:30A/25A 14VDC(23℃)；25A/20A 14VDC(85℃)
|
| Coil power (W) | 0.55W,0.8W |
| Coil voltage (VDC) | 5~24VDC |
| Contact resistance | ≤200mV/at 10A |
| ambient temperature | -40℃~125℃ |
| Installation form | Printed board, socket type |
