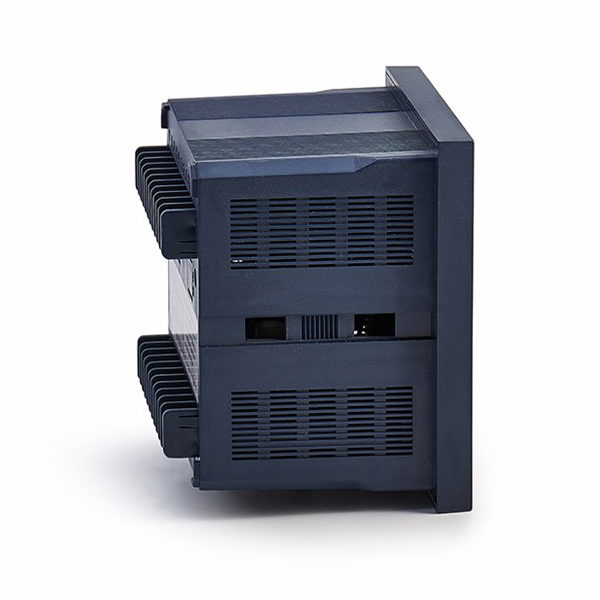

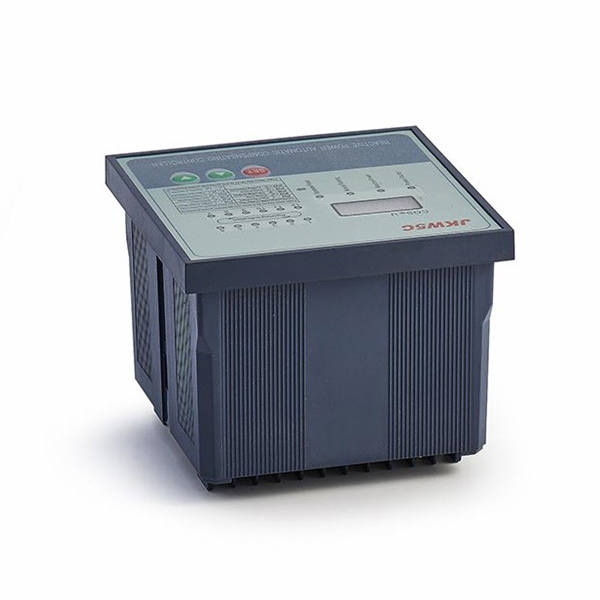

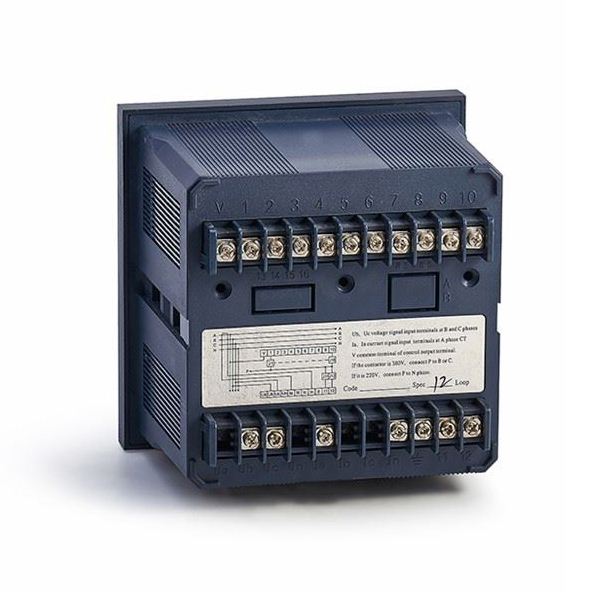

JKW5C Power Factor Correction Controller
Power factor correction controller is an auxiliary product for low voltage capacitor auto compensation cabinet. The number of control channel is 4,6,8,10 and 12.
Main Technical parameter
|
Model |
JKW5C |
|
Rated working voltage |
380V±20%,50Hz |
|
Sampled input current |
AC, lin≤5A |
|
Output contact capacity |
220Vx5A, 380Vx3A |
|
Dielectric strength |
AC3000V |
|
Working method |
Continuous |
|
Switch on threshold |
Reactive current >1.1 lc, cosφ<cosφ preset |
|
Switch off threshold |
power factor>Cosφ preset |
|
Switching time delay |
5-100s adjustable |
|
Over voltage protection |
400-450V adjustable |
|
Phase sequence of sampling signal |
Automatic identifying |
|
Self-checking function |
Yes |
|
Channels controlled |
4,6,8,10,12 |
|
Overall wattage dissipation |
10W |
|
Net Weight |
1.35kg |
|
Size of mounting hole |
113x113mm |
Application Show
